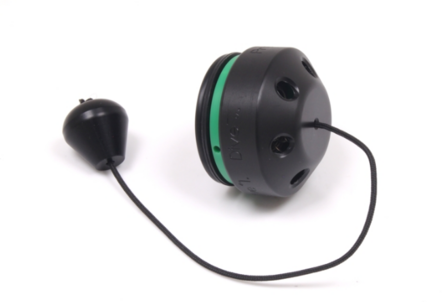

This is the new style JJ-ccr counterlung dump valve.

 1. PRE DIVE MODE

To engage pre-dive mode, press the valve body inward and rotat it 5mm clockwise until it lock into position.
In this mode, the GREEN indicator ring will NOT be visible.
The valve shall remain closed during the test to allow the loop to be pressurized.

2. DIVE MODE- Used during all diving operations
To engage dive mode, rotate the valve counter-clockwise 5mm. the valve will spring outward automatically.
and the GREEN indicator ring at the base will be clearly visable.

Green means good to go

MANUAL OVERIDE
In both positions, the valve can be manually overridden at any time by pulling the attached dump-cord knob mounted on the wing. This allows immediate venting if required.

IMPORTANT
Always verify that the dump valve is in DIVE MODE before entering the water.
Confirm the visible green indicator ring as part of your pre-dive checklist.
